Neural ODEs - II#
We here implement, in heyoka
, a standard traning pipeline for NeuralODE replicating this torcheqdiff demo.
We will be using the very same parameters and dynamics, of the original demo but only use a simple fixed learning rate stochastic gradient descent. Note that it is also possible to use more advanced optimizers such as those implemented in pytorch while computing the gradients using heyoka, but in this tutorial we keep it simple and just update the gradient naively.
See also:
# The main imports
import numpy as np
import time
from itertools import batched
from copy import deepcopy
# Import Heyoka
import heyoka as hy
%matplotlib inline
import matplotlib.pyplot as plt
Generating the ground truth#
The dynamics we consider is a simple third order system:
which we implement in heyoka
as follows:
# The symolic variables representing the system state.
x, y = hy.make_vars("x", "y")
# We now assemble the dynamics.
A = np.array([[-0.1, 2.0], [-2.0, -0.1]])
tmp = np.array([[x * x * x, y * y * y]]) @ A
dyn = [(x, tmp[0][0]), (y, tmp[0][1])]
# For convenience we store here the dimension of the state.
dim = len(dyn)
To generate groundtruth observations from this system we will use the following parameters:
# This is the number of observations (i.e. the ground truth).
data_size = 1000
# This is the initial condition used to generate the observations (i.e. the ground truth).
ic = [2.0, 0.0]
# This is the time grid used to generate the observations (i.e. the ground truth).
t_grid = np.linspace(0.0, 25, data_size)
We start by instantiating a heyoka.taylor_adaptive
object that will generate our observations. These will be considered as ground truth. Note that in other settings this data may be observed from a real phenomena, rather than generated numerically. In that case there will be noise which is here not modelled.
start_time = time.time()
ta = hy.taylor_adaptive(
# The ODEs.
dyn,
# The initial conditions.
ic,
# Do not operate in compact mode.
compact_mode=False,
# Define the tolerance
tol=1e-18,
)
print(
"--- %s seconds --- to build (jit) the Taylor integrator"
% (time.time() - start_time)
)
--- 0.16298365592956543 seconds --- to build (jit) the Taylor integrator
We are thus ready to generate the the ground truth using the method propagate_grid
method of the Taylor adaptive integrator.
# It is good practice to always set initial conditions explicitly
ta.time = 0
ta.state[:] = ic
# This is our ground truth (gt)
gt = ta.propagate_grid(t_grid)[5]

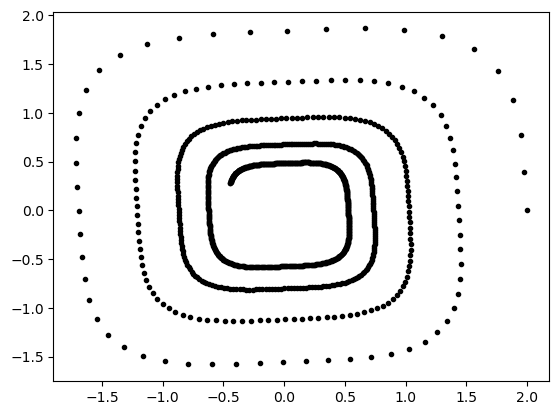

Let us have a look at the generated observations.
plt.plot(gt[:, 0], gt[:, 1], "k.")
[<matplotlib.lines.Line2D at 0x75601c060110>]

Instantiating the neural ODE#
So far we have only generated the data we want to teach our Neural ODE to replicate. We now need to instantiate the Neural ODE system so that we can make predictions and compute the gradient of our loss.
Let us start with instantiating a feed-forward neural network using heyoka.models.ffnn
.
# We define as nonlinearity a simple linear layer
linear = lambda inp: inp
# We call the factory to construct a FFNN. Following the torcheqdiff example here we put cubes as inputs:
ffnn = hy.model.ffnn(
inputs=[x * x * x, y * y * y],
nn_hidden=[50],
n_out=2,
activations=[hy.tanh, linear],
)
We are now able to build a taylor_adaptive_batch
numerical integrator which will propagate the dynamics in batches as to leverage SIMD instructions:
And since we will want to be able to compute the sensitivities of this ODE we are first going to augment such dynamics with the first order variational equations:
# We decide on whether to use single or double precision. In this example it may
# Not be too important, but in other settings it can give a speedup when connected with batch and ensamble propagation.
# The single precision does effect, though, the quality of thegradient direction.
precision = np.double # np.single
batch_size_simd = hy.recommended_simd_size(fp_type=precision)
print("Batch size for SIMD use in integration: ", batch_size_simd)
# We thus define the neural dynamics
dyn_n = [(x, ffnn[0]), (y, ffnn[1])]
# We augment it with the variational one (only order 1 - i.e. gradient)
var_dyn_n = hy.var_ode_sys(dyn_n, args=hy.var_args.params, order=1)
Batch size for SIMD use in integration: 4
… and instantiate the variational integrator. For convenience we also instantiate the non batched version
# This is the batched version, which we will use for gradient computation
ta_var_b = hy.taylor_adaptive_batch(
# The ODEs.
var_dyn_n,
# The initial conditions.
np.ones((dim, batch_size_simd), dtype=precision),
# Operate in compact mode.
compact_mode=True,
# Define the tolerance (low tolerance is enough here)
tol=precision(1e-4),
# Single precision is enough here
fp_type=precision,
)
# This is the normal version used for wuick plotting and visualization of a single solution
ta_var = hy.taylor_adaptive(
# The ODEs.
var_dyn_n,
# The initial conditions.
ic,
# Operate in compact mode.
compact_mode=True,
# Define the tolerance (low tolerance is enough here)
tol=precision(1e-4),
# Single precision is enough here
fp_type=precision,
)
# We store for convenience the initial conditions in a numpy array (including the variational state)
ic_var_b = np.array(ta_var_b.state)
ic_var = np.array(ta_var.state)
Before starting the training, we define the details on the batch we are going to use in the generic step of stochastic gradient descent:
# This is the number of initial conditions to use in one batch (M)
batch_size_ic = 20
# This is the number of observations to predict from each sampled initial condition (T)
batch_size_time = 10
# We check that the observation batch size is a multiple of the simd batch size
print("This must be an integer: ", batch_size_ic / batch_size_simd)
This must be an integer: 5.0
This helper function creates a randomly generated batch from the available observation:
def get_batch(t_grid, gt, batch_size_ic=20, batch_size_time=10):
# We select the initial conditions from which generate predictions
s = np.random.choice(
np.arange(gt.shape[0] - batch_size_time, dtype=np.int64),
batch_size_ic,
replace=False,
)
batch_ic = gt[s, :] # (M, D)
# Assuming uniform grid and a non-autonomous system, all predictions will be made on the same time grid
batch_t_grid = t_grid[:batch_size_time] # (T)
batch_y = np.stack([gt[s + i] for i in range(batch_size_time)]) # (T,M,D)
return batch_ic, batch_t_grid, batch_y
Let us visualize what a batch looks like. First we generate one:
batch_ic, batch_t_grid, batch_y = get_batch(t_grid, gt, batch_size_ic, batch_size_time)
# We need the tgrid repeated as per heyoka API of the taylor adaptive batch
t_grid_b = np.repeat(batch_t_grid, batch_size_simd).reshape(-1, batch_size_simd)

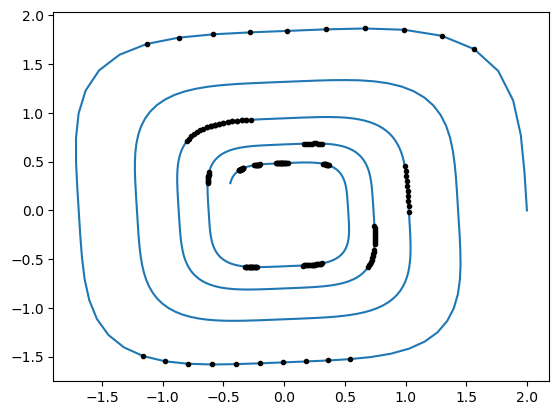

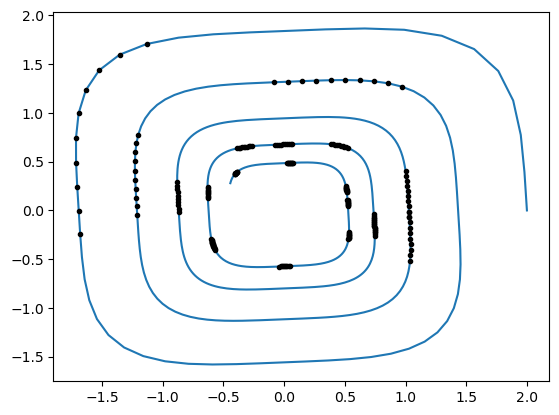

Then we plot it overlapped to all the observations:
plt.plot(gt[:, 0], gt[:, 1])
for i in range(batch_size_ic):
plt.plot(batch_y[:, i, 0], batch_y[:, i, 1], "k.")

We initialize the network weights and biases.
# We compute initialization values for weigths / biases
n_pars = len(ta_var_b.pars)
nn_wb = np.random.normal(loc=0, scale=0.1, size=(n_pars,))

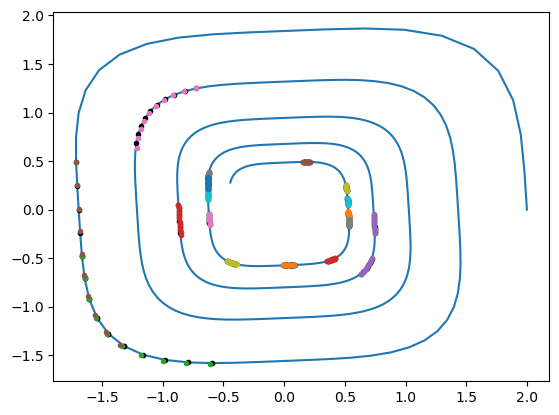

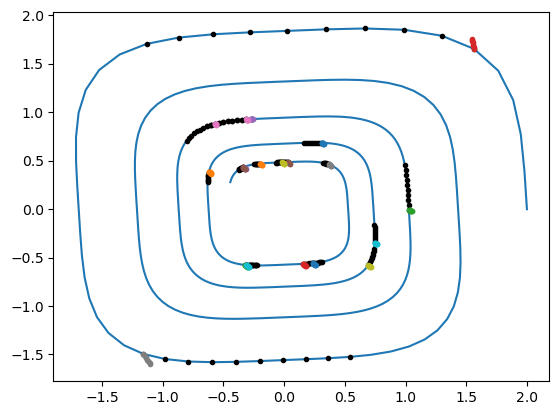

And visualize the prediction of the starting random network.
plt.plot(gt[:, 0], gt[:, 1])
for i in range(batch_size_ic):
plt.plot(batch_y[:, i, 0], batch_y[:, i, 1], "k.")
start_time = time.time()
for batch in batched(batch_ic, batch_size_simd):
ta_var_b.set_time(precision(0.0))
ta_var_b.state[:, :] = deepcopy(ic_var_b)
ta_var_b.state[:dim, :] = np.array(batch).T
ta_var_b.pars[:] = np.tile(nn_wb, (batch_size_simd, 1)).T
sol_b = ta_var_b.propagate_grid(np.array(t_grid_b, dtype=precision))[1]
for sol in [sol_b[:, :, i] for i in range(batch_size_simd)]:
plt.plot(sol[:, 0], sol[:, 1], ".")
print(
"--- %s seconds --- to compute prediction over the whole batch"
% (time.time() - start_time)
)
--- 0.015778303146362305 seconds --- to compute prediction over the whole batch

Training#
To train we need to first compute the gradient of the loss over the batch (M initial conditions and T times). Formally
This helper function computes the loss and the gradient over one batch. The gradient is computed rearranging the ODE sensitivities computed propagating the variational dynamics:
def loss_and_gradient(nn_wb, batch_ic, batch_y):
# We reset the batch_loss value
batch_loss = 0
# We reset the gradient loss
grad = np.array([0.0] * ta_var_b.pars.shape[0])
counter = 0
# We process the batch (of the dataset) in batches for SIMD efficient processing
for batch_simd in batched(batch_ic, batch_size_simd):
ta_var_b.set_time(precision(0.0))
ta_var_b.state[:, :] = deepcopy(ic_var_b)
ta_var_b.state[:dim, :] = np.array(batch_simd).T
ta_var_b.pars[:] = np.tile(nn_wb, (batch_size_simd, 1)).T
sol_b = ta_var_b.propagate_grid(np.array(t_grid_b, dtype=precision))[1]
# The numerical integration on the simd_batch is done, we process its result
# accumulating loss and gradient on the predictions
for sol in [sol_b[:, :, i] for i in range(batch_size_simd)]:
# Here is the term (y-y_hat)
diff = sol[:, :dim] - batch_y[:, counter, :]
counter += 1
# Which is then summed sum sum (y-y_hat).(y-y_hat)
batch_loss += np.sum(diff**2)
# And the gradient computed as 2 sum (y-y_hat).dy
for dy in sol[:, dim:].reshape(batch_y.shape[0], dim, -1):
grad += 2 * np.sum(diff @ dy, axis=0)
# We then take the mean over the points used
batch_loss /= batch_size_ic * batch_size_time
grad /= batch_size_ic * batch_size_time
return batch_loss, grad
Using the various blocks defined above the training loop takes the form:
# We reset initialization values for weigths / biases
n_pars = len(ta_var_b.pars)
nn_wb = np.random.normal(loc=0, scale=0.1, size=(n_pars,))
# We loop over the epochs
n_epochs = 3000
start_time = time.time()
for i in range(n_epochs):
# 1 - generate a batch
batch_ic, batch_t_grid, batch_y = get_batch(
t_grid, gt, batch_size_ic=batch_size_ic, batch_size_time=batch_size_time
)
# 2 - compute the loss and gradient on the batch
batch_loss, grad = loss_and_gradient(nn_wb, batch_ic, batch_y)
print(f"iter: {i}, loss : {batch_loss:.3e}", end="\r")
# 3 - update the weights and biases (learning rate here is fixed, we use a naive update rule which in this case works)
nn_wb = nn_wb - 0.1 * grad
print(f"iter: {i}, loss : {batch_loss:.3e}", end="\n")
print("--- %s seconds --- to perform %i epochs" % (time.time() - start_time, n_epochs))
iter: 2999, loss : 1.385e-04
--- 27.929445266723633 seconds --- to perform 3000 epochs
NOTE: For comparison we also called the torcheqdiff demo using the following command line ‘python ode_demo.py –niters 3000’. This triggers a comparable number of gradient evaluations on CPU. The iterations done in torcheqdiff
complete in 348 seconds showing how on common CPUs, the use of heyoka
may offer a significant speedup for NeuralODE research.

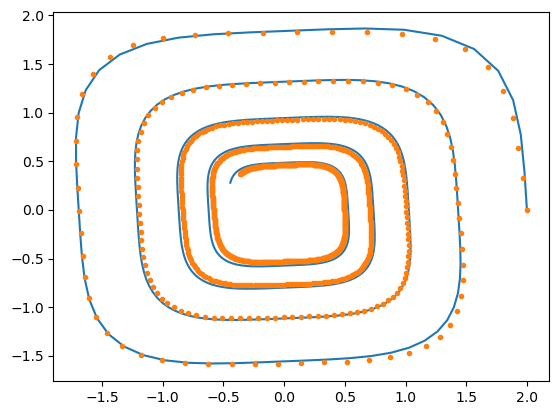

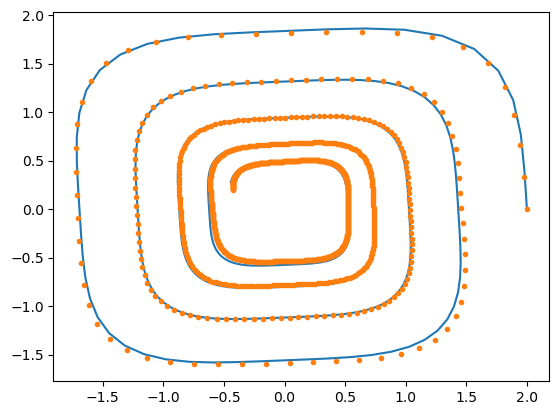

We are now ready to visualize the result of the learned neural ODE:
plt.plot(gt[:, 0], gt[:, 1])
ta_var.time = precision(0)
ta_var.state[:] = list(ic_var)
ta_var.state[:2] = ic
ta_var.pars[:] = np.array(nn_wb, dtype=np.single)
sol = ta_var.propagate_grid(np.array(t_grid, dtype=precision))[5]
plt.plot(sol[:, 0], sol[:, 1], ".")
[<matplotlib.lines.Line2D at 0x755e91bfa8d0>]

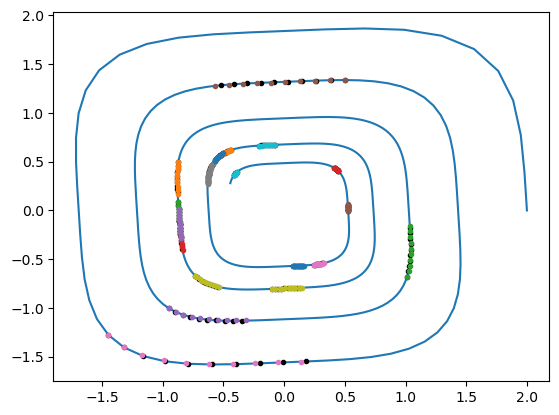

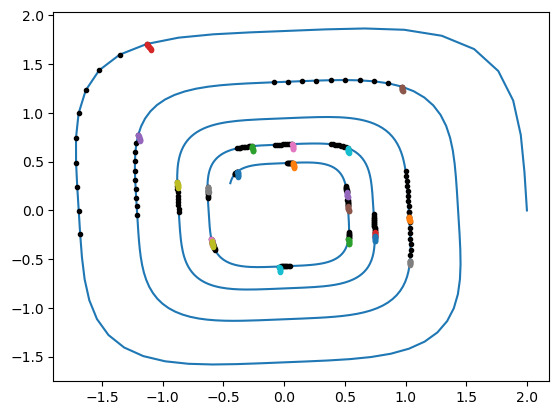

It is also of interest to visualize the predictions of the trained system over a new random batch, as opposed to the predictions of the entire trajectory from the first observation:
batch_ic, batch_t_grid, batch_y = get_batch(t_grid, gt, batch_size_ic, batch_size_time)
plt.plot(gt[:, 0], gt[:, 1])
for i in range(batch_size_ic):
plt.plot(batch_y[:, i, 0], batch_y[:, i, 1], "k.")
start_time = time.time()
for batch in batched(batch_ic, batch_size_simd):
ta_var_b.set_time(precision(0.0))
ta_var_b.state[:, :] = deepcopy(ic_var_b)
ta_var_b.state[:dim, :] = np.array(batch).T
ta_var_b.pars[:] = np.tile(nn_wb, (batch_size_simd, 1)).T
sol_b = ta_var_b.propagate_grid(np.array(t_grid_b, dtype=precision))[1]
for sol in [sol_b[:, :, i] for i in range(batch_size_simd)]:
plt.plot(sol[:, 0], sol[:, 1], ".")
print(
"--- %s seconds --- to compute prediction over the whole batch"
% (time.time() - start_time)
)
--- 0.016167402267456055 seconds --- to compute prediction over the whole batch
